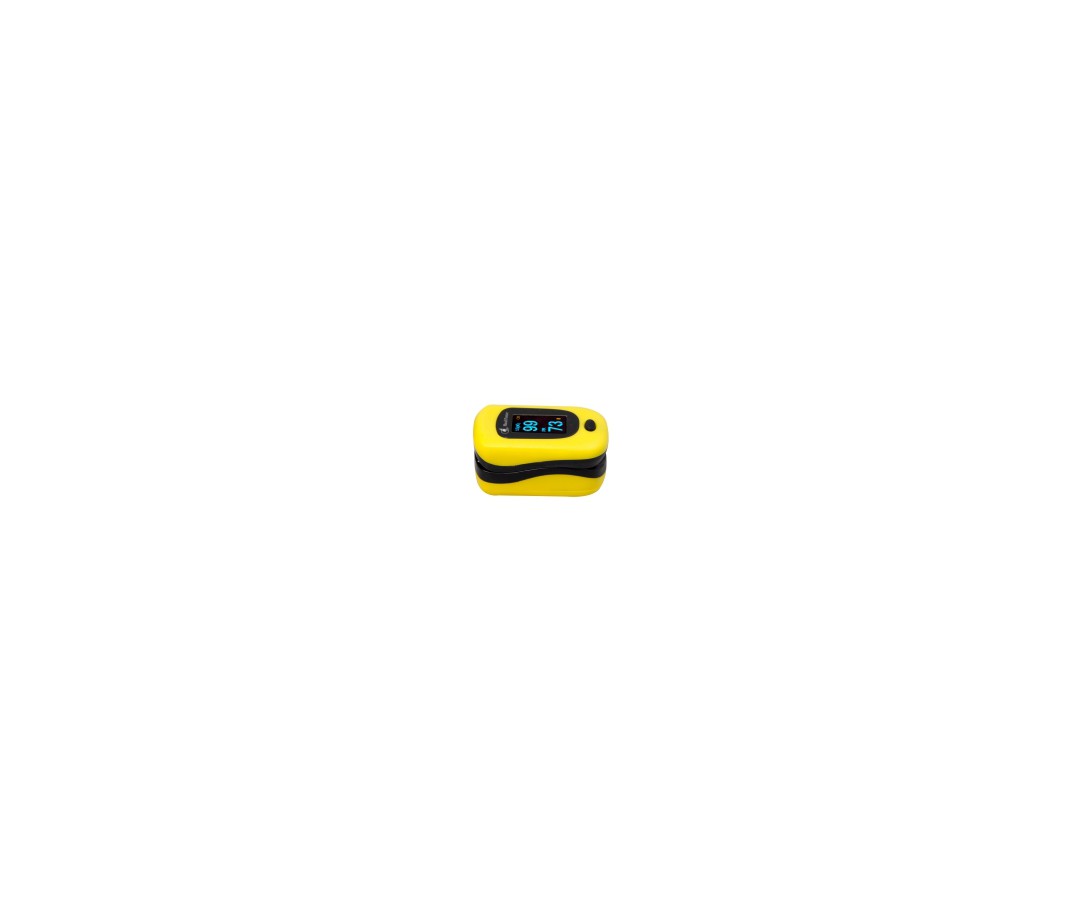

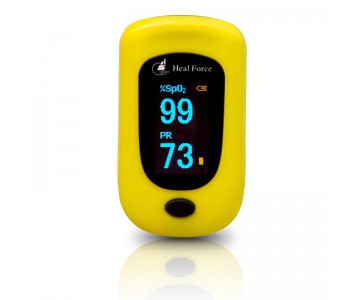

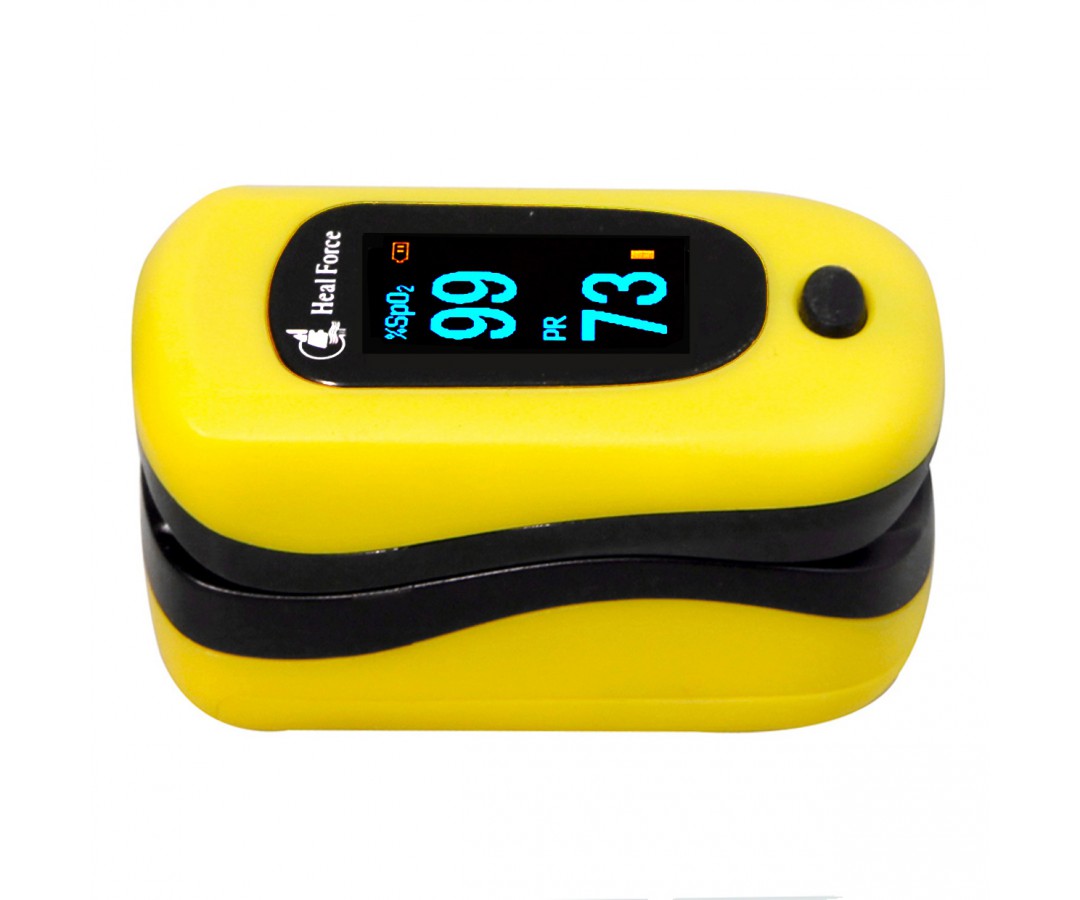

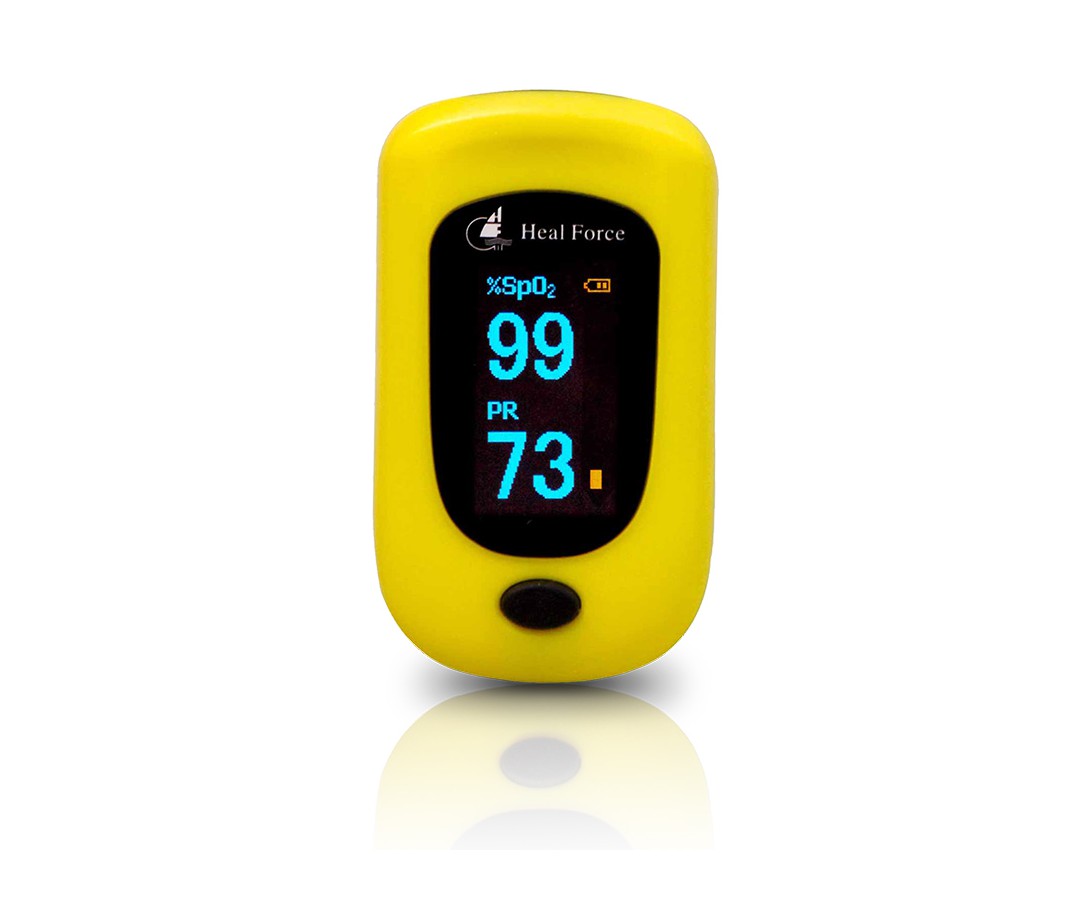

Performance characteristics

1. Lightweight and easy to carry

2. 0.95 inch color LCD backlit display

3. It can display blood oxygen saturation, pulse rate, blood perfusion index, pulse intensity histogram, blood oxygen volume waveform

4. The display interface supports four-way rotation

5. The light-proof baffle design greatly reduces the interference of external light sources

6. Good performance under low perfusion; Strong anti-interference ability

7. Intelligent power-saving mode: automatic shutdown after no signal for more than 8 seconds

8. With low battery prompts and other functions

9. Two AAA batteries, which can last for 50 hours

10. High-quality manufacturing technology: the whole machine is anti-drop, anti-splash, anti-motion, and greatly extends the service life

Technical parameters

Blood oxygen saturation (SPO2)

Measurement range: 35%~100%

Measurement accuracy: 75%~100%: ±2%

                                        50%~75%: ±3%

Alarm range: ≤ 95%

Pulse rate (PR)

Measurement range: 30bpm~240bpm

Accuracy: ±2% or ±2bpm, whichever is greater

Pulse rate alarm range: upper limit alarm: 160bpm; lower limit alarm: 60bpm

Pulse rate alarm error ±2% or ±2 bpm, whichever is greater

Perfusion Index (PI)

Measurement range: 0.2%～20%

Measurement accuracy: 0.2%~2% ±0.1%

                                       2%~10% ±1%

                                       10%~20% ±2%

Anti-interference

Anti-interference ability of natural light: The deviation of the blood oxygen measurement value under indoor natural light and existing lighting source is less than ±1% compared with the measurement value under darkroom conditions.

Anti-artificial light interference ability: It can accurately measure the pulse oximetry value and pulse rate value under the test conditions of the pulse oximeter simulator.

Power supply

Power requirements: 2 AAA 1.5V alkaline batteries or rechargeable batteries

Voltage range: 2.7V~3.3V

Working current: <40mA

Specifications

Dimensions: length 66 × width 36 × height 33 (mm)

Net weight: 60g (including battery)

Environmental requirements

Operating temperature: 5℃～40℃

Storage temperature: -20℃～55℃

Environmental humidity: Working humidity: 35%～80%

                                       Storage humidity: 10%～100%

Atmospheric pressure: working range: 70kPa～106kPa

                                     Storage range: 50kPa～106kPa
